GYFTA Optical Kab
Deskripsyon

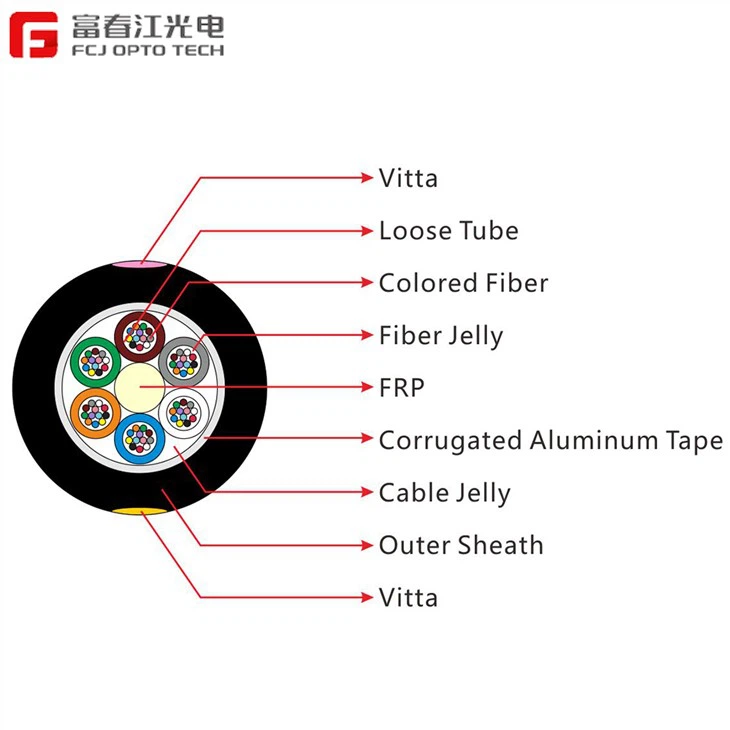

Fib yo, 250μm, yo pozisyone nan yon tib ki lach ki fèt ak yon plastik modil segondè. Tib yo plen ak yon konpoze ranpli ki reziste dlo. Yon Plastik Fibre Ranfòse (FRP) lokalize nan sant la nan nwayo kòm yon manm fòs ki pa metalik. Tib yo (ak file) yo bloke alantou manm fòs la nan yon nwayo kontra enfòmèl ant ak sikilè. Apre yo fin aplike yon baryè imidite aliminyòm Polyethylene Plastifye (APL) alantou nwayo kab la, kab la fini ak yon djenn PE.
Karakteristik
· Bon pèfòmans mekanik ak tanperati
· Segondè fòs ki lach tib ki reziste idroliz
· Espesyal tib ranpli konpoze asire yon pwoteksyon kritik nan fib
· Espesyalman ki fèt estrikti kontra enfòmèl ant se bon nan anpeche tib ki lach soti nan retresi
· PE djenn pwoteje kab kont radyasyon iltravyolèt
· Yo pran mezi sa yo pou asire kab la enpèmeyab:
- Single Fib Ranfòse Plastik kòm manm fòs santral la
- Tib ki lach ranpli konpoze
- 100 pousan ranpli nwayo kab
- APL baryè imidite
Estanda
Kab GYFTA konfòm ak Standard YD/T 901-2001ak IEC 60794-1.
Karakteristik optik
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Atténuation (plis 20 degre) |
@850nm |
|
|
Mwens pase oswa egal a 3.0 dB/km |
Mwens pase oswa egal a 3.0 dB/km |
|
@1300nm |
|
|
Mwens pase oswa egal a 1.0 dB/km |
Mwens pase oswa egal a 1.0 dB/km |
|
|
@1310nm |
Mwens pase oswa egal a 0.36 dB/km |
Mwens pase oswa egal a 0.40 dB/km |
|
|
|
|
@1550nm |
Mwens pase oswa egal a 0.22 dB/km |
Mwens pase oswa egal a 0.23dB/km |
|
|
|
|
Bandwidth (Klas A) |
@850nm |
|
|
Pi gran pase oswa egal a 500 MHz·km |
Pi gran pase oswa egal a 200 MHz·km |
|
@1300nm |
|
|
Pi gran pase oswa egal a 1000 MHz·km |
Pi gran pase oswa egal a 600 MHz·km |
|
|
Ouverture nimerik |
|
|
{{0}}.200±0.015NA |
{{0}}.275±0.015NA |
|
|
Kab koupe longèdonn |
Mwens pase oswa egal a 1260nm |
Mwens pase oswa egal a 1480nm |
|
|
|
Paramèt teknik
|
Kalite kab |
Konte fib |
Tib |
Ranpli |
Dyamèt kab mm |
Pwa kab kg/km |
Fòs rupture Long/Kout tèm N |
Kraze Rezistans Long / Kout tèm N/100mm |
Reyon koube Estatik /Dinamik mm |
|
GYFTA-2~6 |
2~6 |
1 |
5 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-8~12 |
8~12 |
2 |
4 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-14~18 |
14~18 |
3 |
3 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-20~24 |
20~24 |
4 |
2 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-26~30 |
26~30 |
5 |
1 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-32~36 |
32~36 |
6 |
0 |
11.4 |
108 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTA-2~12 |
2~12 |
1 |
5 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-14~24 |
14~24 |
2 |
4 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-26~36 |
26~36 |
3 |
3 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-38~48 |
38~48 |
4 |
2 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-50~60 |
50~60 |
5 |
1 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-62~72 |
62~72 |
6 |
0 |
12.8 |
134 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTA-2~6 |
2~6 |
1 |
7 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-8~12 |
8~12 |
2 |
6 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-14~18 |
14~18 |
3 |
5 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-20~24 |
20~24 |
4 |
4 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-26~30 |
26~30 |
5 |
3 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-32~36 |
32~36 |
6 |
2 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-38~42 |
38~42 |
7 |
1 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-44~48 |
44~48 |
8 |
0 |
12.8 |
140 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-50~60 |
50~60 |
5 |
3 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-62~72 |
62~72 |
6 |
2 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-74~84 |
74~84 |
7 |
1 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-86~96 |
86~96 |
8 |
0 |
14.8 |
176 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-98~108 |
98~108 |
9 |
1 |
17.1 |
226 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-110~120 |
110~120 |
10 |
0 |
17.1 |
226 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-122~132 |
122~132 |
11 |
1 |
19.2 |
279 |
1000/3000 |
300/1000 |
10D/20D |
|
GYFTA-134~144 |
134~144 |
12 |
0 |
19.2 |
279 |
1000/3000 |
300/1000 |
10D/20D |
Depo/Tanperati Fonksyònman: -40 degre a plis 70 degre
